🏠 House Plan — an interactive house plan for Home Assistant

A live map of your home right inside Home Assistant: floors, rooms and devices on a real floor plan — with live states, temperature and signal strength. Everything is configured with the mouse, without a single line of YAML.

🇷🇺 Документация на русском

---

What it is and why

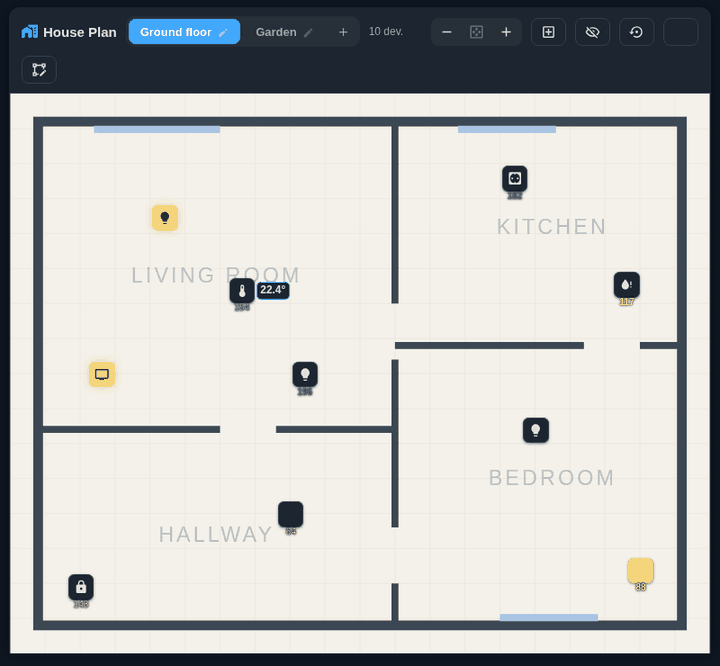

House Plan shows your smart home the way it actually looks — on a floor plan. Instead of long lists of entities, you see rooms and devices in their real places: where the leak is, what the temperature is in the kids' room, whether the light is on in the hallway, whether the gate is open.

This is convenient when:

• you have many devices and lists are awkward to use;
• you need to grasp the state of the house "at a glance";
• you want to give access to family members — anyone can figure out a picture;
• you want a beautiful overview screen for a wall-mounted tablet.

The integration consists of two parts that are installed together:

• the Lovelace card houseplan-card — the interactive plan itself;
• the server-side component — stores the room markup and icon positions in Home Assistant, so the plan is identical in all browsers and on all devices.

---

How it differs from alternatives

A house plan in Home Assistant is usually built with picture-elements, ha-floorplan and similar solutions. There you have to write YAML by hand, calculate the coordinates of every icon, and edit the config again after every change. House Plan works differently:

	House Plan	Typical solutions (picture-elements / ha-floorplan)
Setup	Entirely through the UI, with the mouse	Manual YAML and code editing
Adding devices	Automatic, by room	You type in every entity by hand
Icon coordinates	Drag with the mouse	You count pixels and write them into the config
Room markup	Built-in outline editor	You draw in an external SVG editor
Storage	On the HA server (shared by all devices)	In the dashboard YAML
Zoom	Smooth zoom, everything stays crisp (vector)	Usually a fixed image

Key advantages in short:

• No code at all. Everything — spaces, rooms, devices — is configured with clicks.
• Automatic device placement. Outline a room and bind it to a Home Assistant area — the devices of that area appear on the plan by themselves.
• Manual additions of your own. Any device, group or even a "virtual" point can be placed on the plan manually, with a name, icon, model, link and an attached PDF manual.
• Live states. Temperature, Zigbee signal strength, on/off, open/closed — everything updates in real time.
• Crisp zoom. Zooming in does not "blur" the picture: the plan, labels and icons remain vector-sharp at any scale.

---

Installation

Via HACS (recommended)

1. Open HACS → menu (⋮) → Custom repositories.
2. Paste the URL of this repository, set the category to Integration, and click Add.
3. Find House Plan in the list, install it and restart Home Assistant.
4. Go to Settings → Devices & Services → Add integration and select House Plan.

The card is registered automatically — no need to add a Lovelace resource manually.

Card doesn't load (Custom element doesn't exist: houseplan-card) or you manage Lovelace resources in YAML? Add the resource manually pointing at the URL the integration serves:

resources:
  - url: /houseplan_files/houseplan-card.js
    type: module

Do not use /custom_components/houseplan/frontend/houseplan-card.js — that is the file on disk, which Home Assistant does not serve over HTTP (you'll get a text/plain MIME error and the element never registers). The correct, integration-served URL is /houseplan_files/houseplan-card.js. Both cards (houseplan-card and houseplan-space-card) ship in that one file — no separate resource is needed.

Manually

1. Copy the custom_components/houseplan folder into the config/custom_components directory of your Home Assistant.
2. Restart Home Assistant.
3. Add the integration: Settings → Devices & Services → Add integration → House Plan.

Adding a plan screen

Create a new dashboard tab (a "Panel" view works best) and add the card:

type: custom:houseplan-card
title: House plan

Nothing else needs to be specified — everything else is configured right on the screen.

---

How to use

Step 1. Add a space (floor)

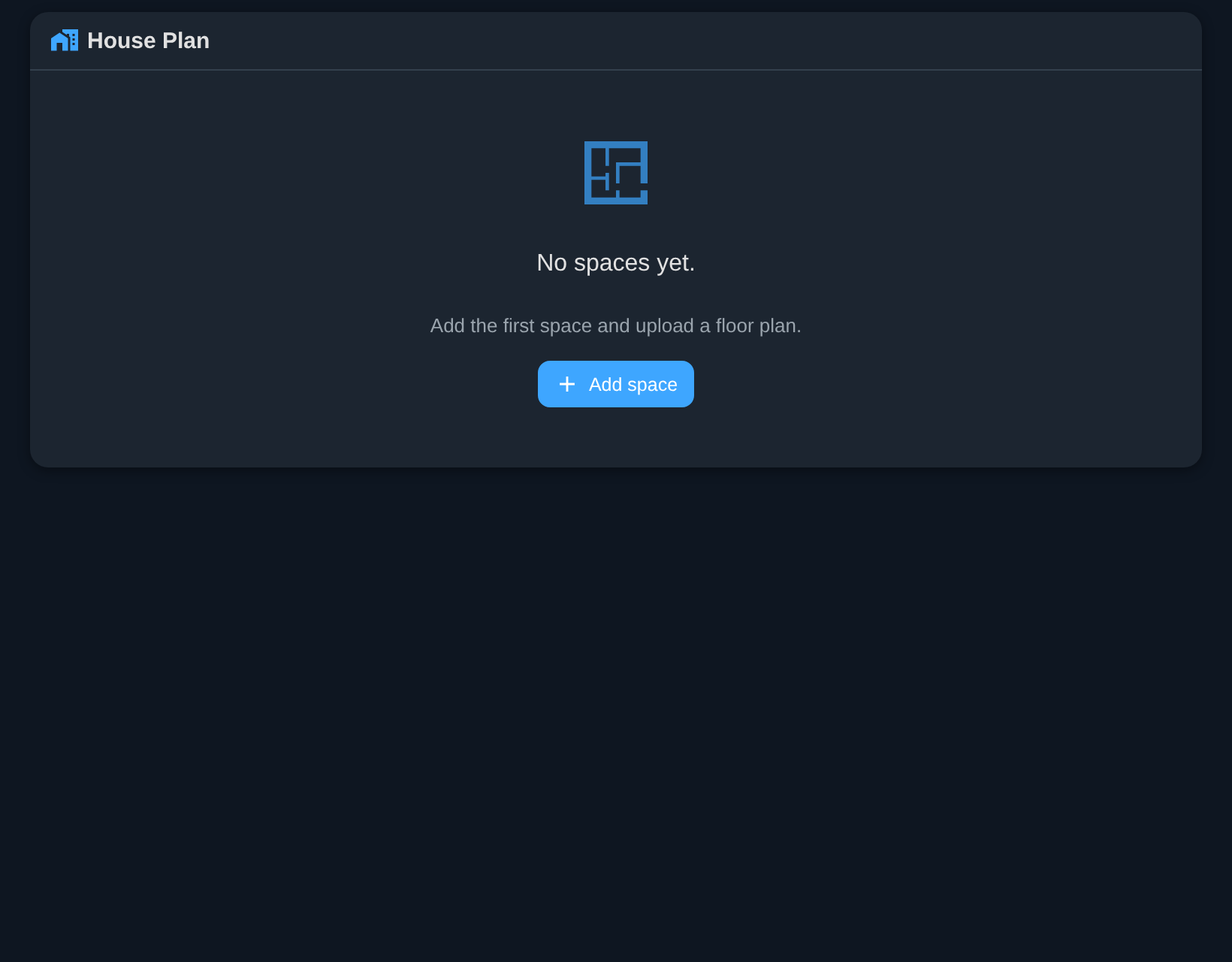

On first open the plan is still empty — House Plan immediately offers to create the first space. If your Home Assistant already has floors configured, a wizard offers to create a space for each floor (names prefilled, a plan image is asked for one by one; any floor can be skipped).

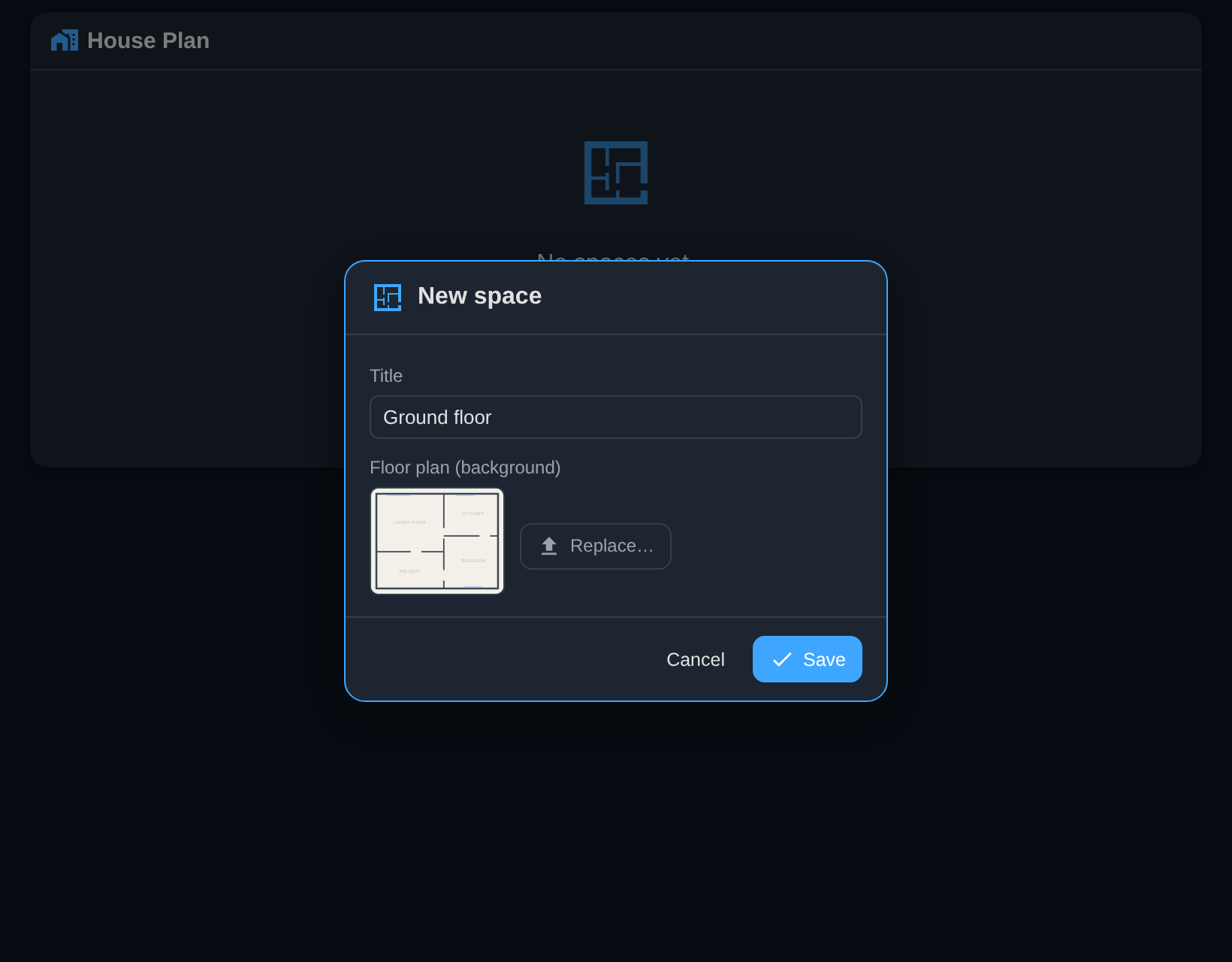

In the dialog, set a name (for example, "1st floor") and upload a background — a floor-plan image in SVG, PNG or JPG format. Both fields are required: without a plan the "Save" button stays disabled.

💡 You can draw the background in any floor planner (for example, REMPLANNER) or photograph a paper plan. SVG works best — it stays crisp when zoomed in.

Later you can add as many spaces as you like (floors, yard, garage) with the ＋ button next to the tabs.

Step 2. Outline the rooms

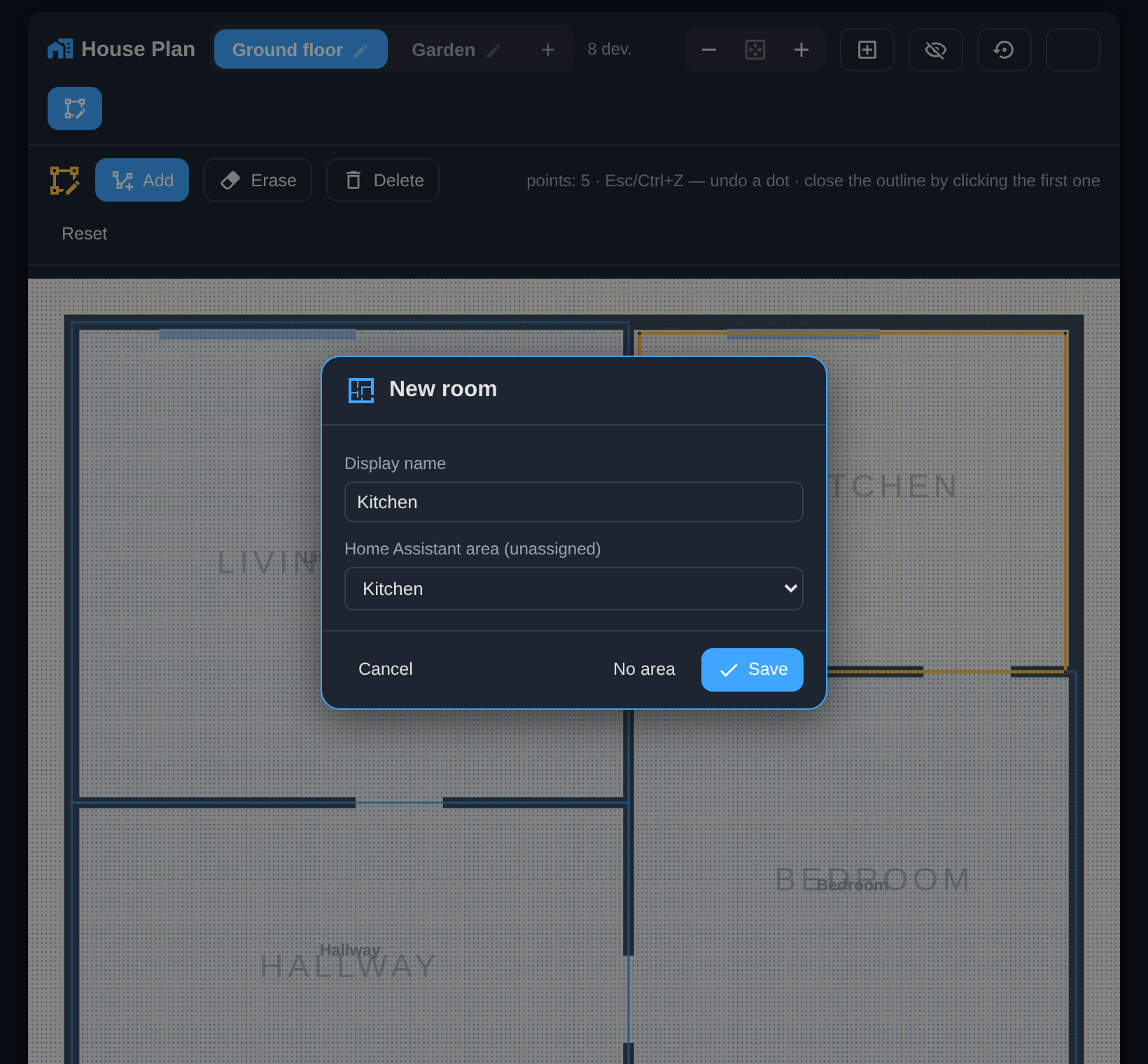

After the first space is added, the card switches to markup mode by itself. Click grid points, connecting them with lines, and close the room outline by clicking the first point.

As soon as the outline is closed, the room-save dialog appears. Here you need to bind the room to a Home Assistant area — this is exactly what enables the automation. For utility rooms with no devices (hall, sauna) there is a "No area" button.

Step 3. Devices appear by themselves

As soon as you save a room bound to an area, the devices of that area are automatically laid out inside the outline. These are the same devices shown on the Settings → Devices → (filtered by the room) page — only the meaningful ones, without service records, bridges and duplicates.

By default only meaningful devices make it onto the plan — service records, bridges and duplicates are filtered out. If you need to see absolutely all devices of the area, enable the 👁 "Show all devices" button in the header.

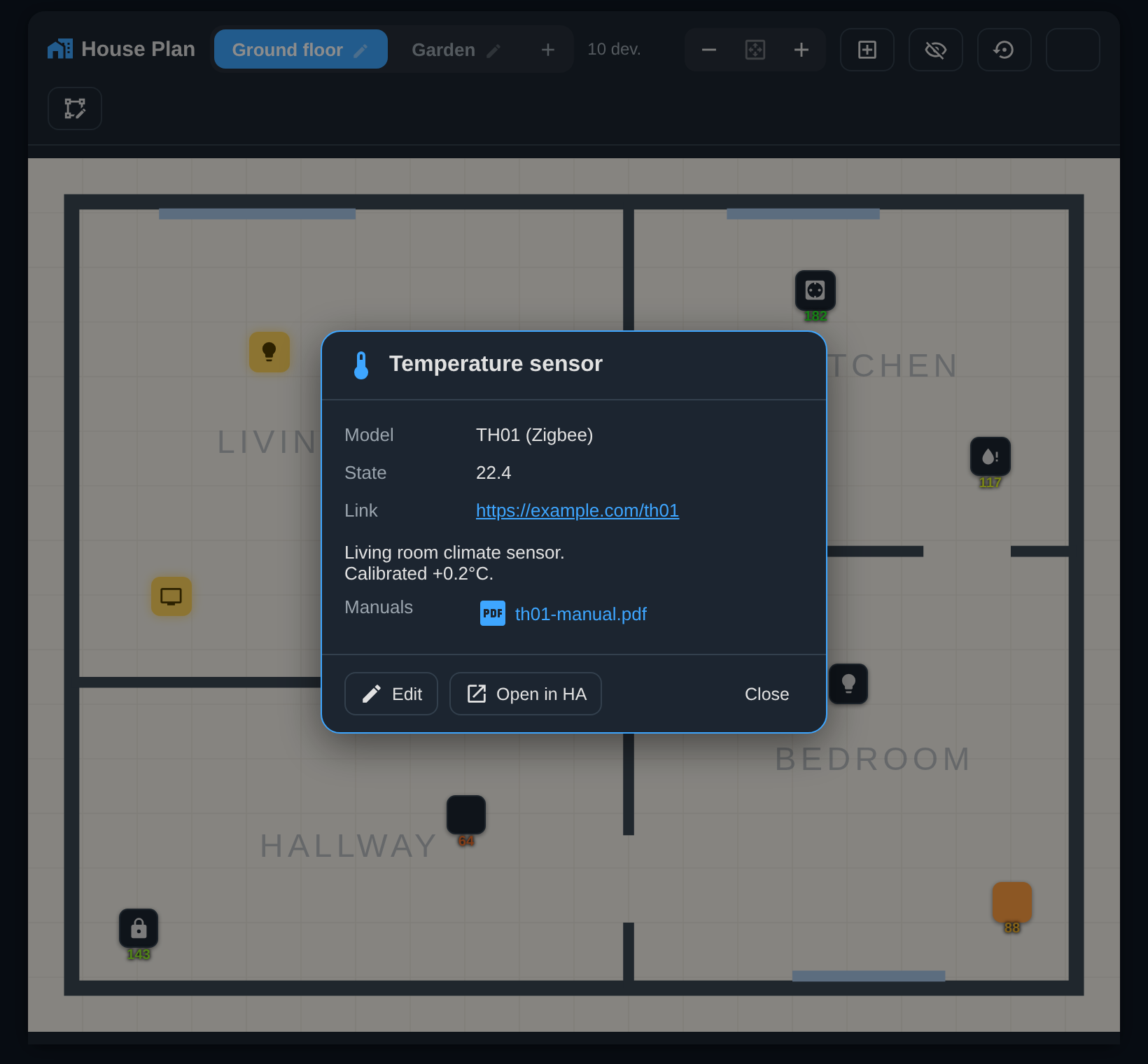

From here on you can just use the plan: clicking an icon opens the device card with the model, link and a button to jump into Home Assistant.

Step 4. Zoom

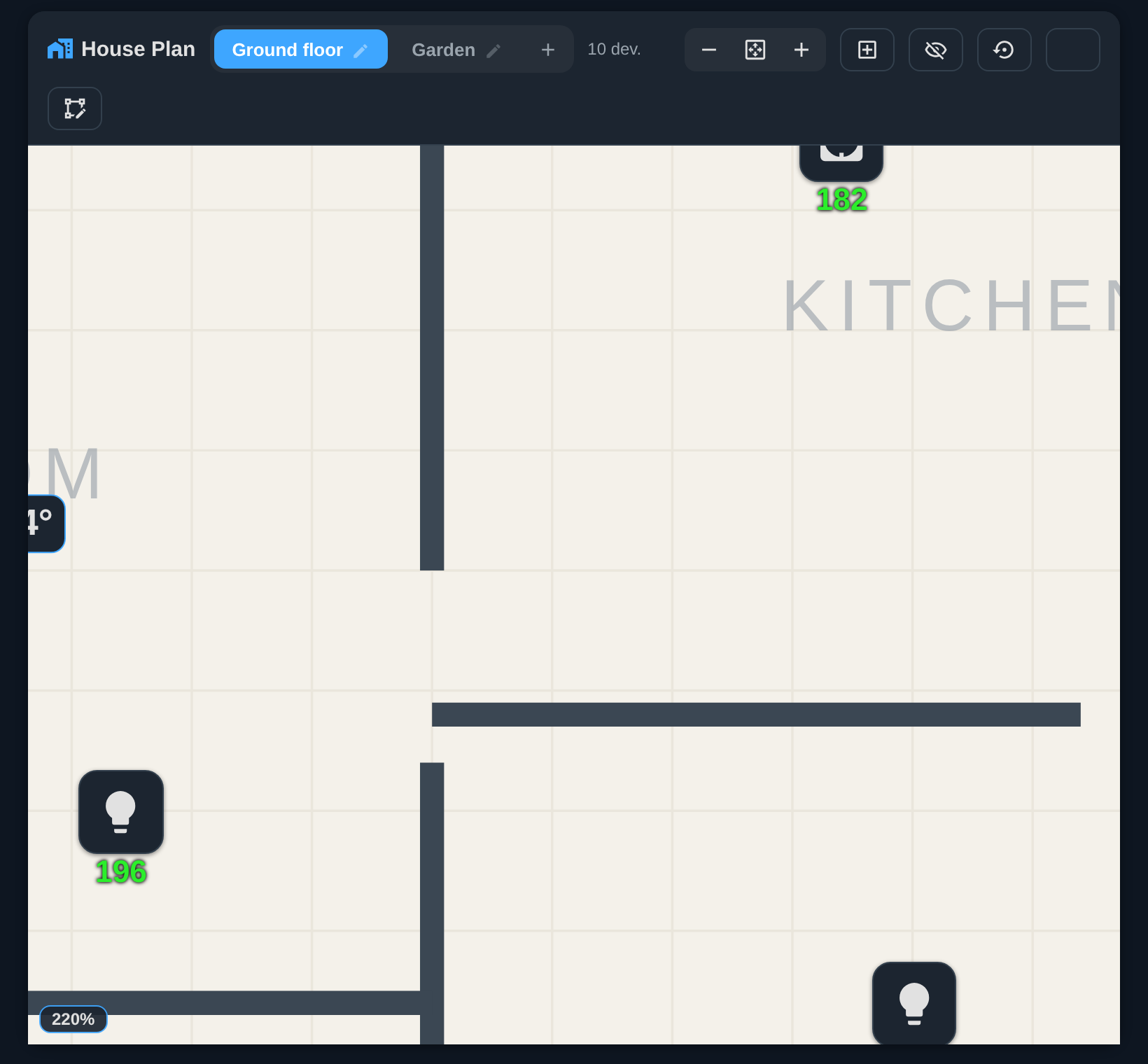

The mouse wheel or the － / ⊹ / ＋ buttons zoom the plan in and out; on a touch screen the two-finger pinch works. Zoomed out you see the whole plan, zoomed in you see the details, and everything stays crisp. The zoom level is remembered separately for each space.

Step 5. Put the icons in their places

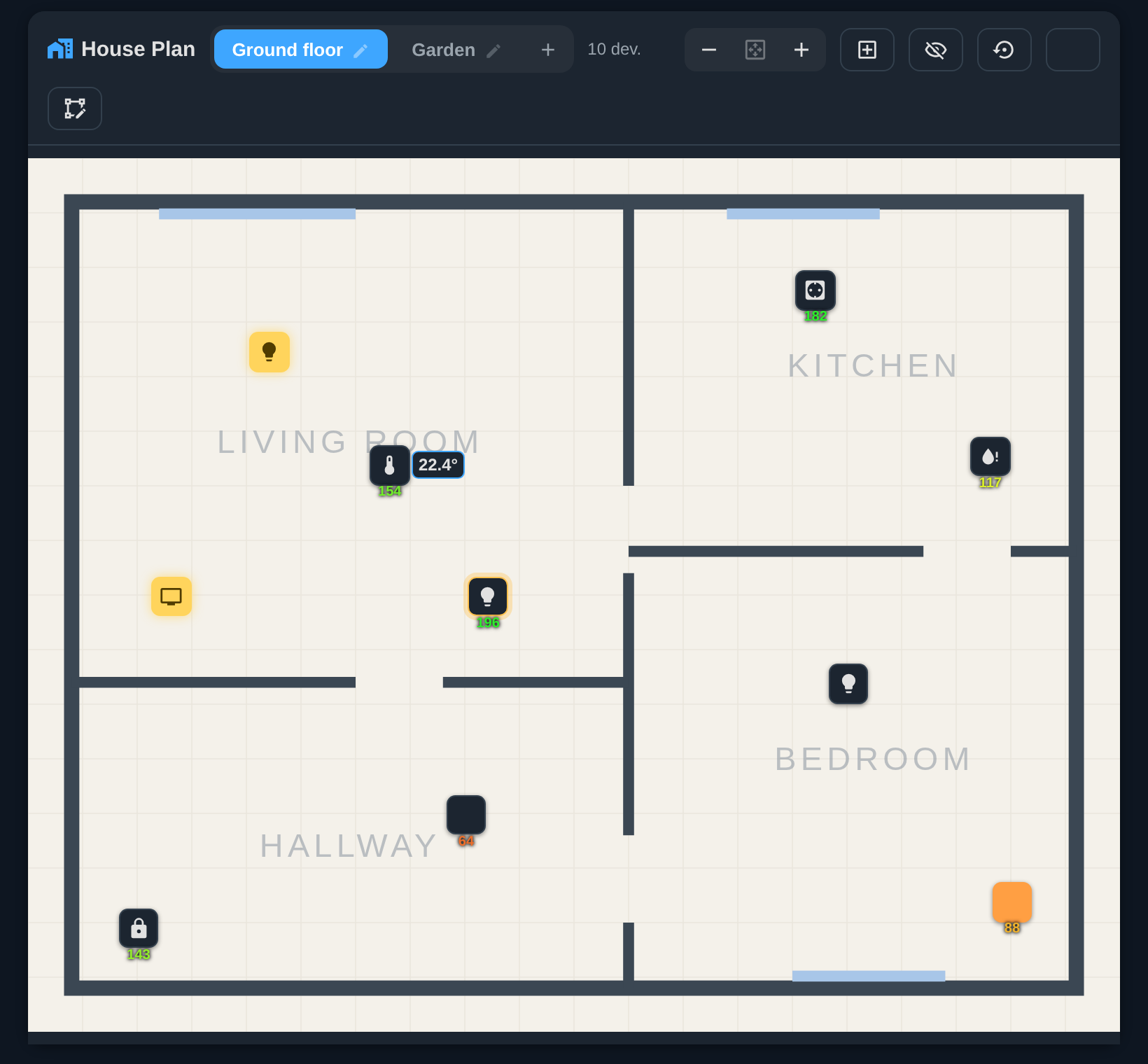

Device icons can be dragged with the mouse at any time — no separate "edit mode" needs to be enabled. Positions are saved on the server and are identical in all browsers and devices. The ↺ button in the header restores the automatic layout.

Tap actions: control devices from the plan

By default a tap on an icon opens its info card. In the card settings you can switch Tap on a device to Toggle — a tap then switches lights, sockets, fans and humidifiers directly on the plan (wall-tablet style). For safety, a card-wide toggle never affects locks, alarms, covers or valves; you can consciously enable toggle for a specific device (except locks and alarms — those never toggle from the plan) in its edit dialog. A long press always opens the info card.

Icon rules

Which MDI icon a device gets is decided by icon rules — editable right in the card (the ⬡ button in the header): an ordered list of “name pattern → icon” regexes with a live test field, bilingual defaults (EN/RU) and a one-click reset. When no rule matches, the entity device class decides (thermometer for temperature sensors, etc.).

Step 6. Adding your own devices manually

You can also place a single entity (not just a whole device): start typing in the binding search and individual entities appear next to devices — handy when one device exposes several values (e.g. temperature and humidity) and you want each as its own icon.

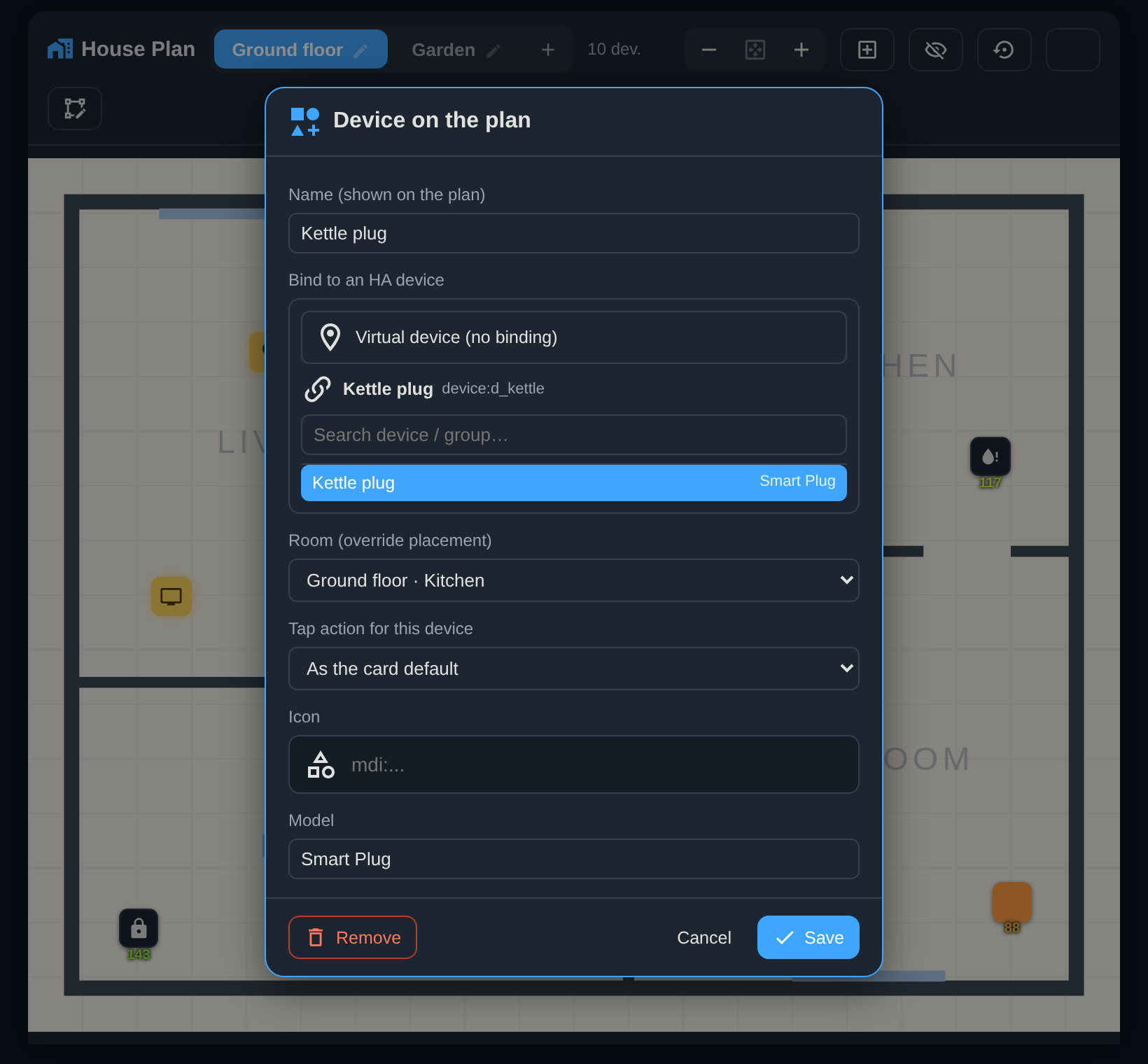

Not everything has to be left to the automation. With the ＋ button in the header you can place any device, group or a virtual point on the plan (for example, an "Inlet valve" that does not exist as a device). Set a name, icon, model, link, description and, if you wish, attach a PDF manual.

---

Uninstalling

1. Remove the card (or the tab with the plan) from the dashboard.
2. Settings → Devices & Services → House Plan → Delete the integration entry.
3. Remove the integration from HACS (or delete the custom_components/houseplan folder if installed manually) and restart Home Assistant.
4. Optionally delete the saved plan data: the config/houseplan/ files (backgrounds and attachments) and the houseplan.config / houseplan.layout entries in the config/.storage directory.

---

Frequently asked questions

Do I need to write anything in YAML? No. The only line is adding the card to the dashboard; everything else is done with the mouse.

My devices did not appear on the plan. A device appears only if its Home Assistant area is bound to a drawn room. Check that the device has a room assigned (Settings → Devices) and that the room is outlined and bound to that area. If the device exists but is hidden by curation (bridges, service records, duplicates) — enable the 👁 "Show all devices" button in the header.

Can I hide an unwanted device or rename it? Yes — click the device on the plan and press "Edit" in its card: there you can change the name, icon, model or hide the icon.

Is the data stored in the cloud? No. Everything is stored locally in your Home Assistant.

---

_{Screenshots were taken on a real Home Assistant configuration.}
